Productions rack mounts are units that are designed using CAD software located at our local Metal Master. Once the design stage is complete, there is a preproduction run make to check out all the details, two or three units are produced. Once the inspection has passed the test, it’s time to do a production run.

The CAD software instructions is sent to large punches and presses that punch sheets of metal into a pattern that once bent to shape become either a rack mount rack trays or front panels.

There is a minimum run of 50 units required to be cost effective. The set up charges and design cost has to be spread over those 50 units.

We must be selective as to which radios are popular enough so we don’t end up with a warehouse full of slow moving inventory (we call is scrap metal). We are always interested it which radio are selling well and test the market to confirm which radios that operators will be most interested in rack mounting. We have make some questionable decisions in the past, a couple of rack mounts were so slow moving, it took 5 years to sell 50 units. We have also hit a few good ones.

Collins Radio Rack Mount Kits

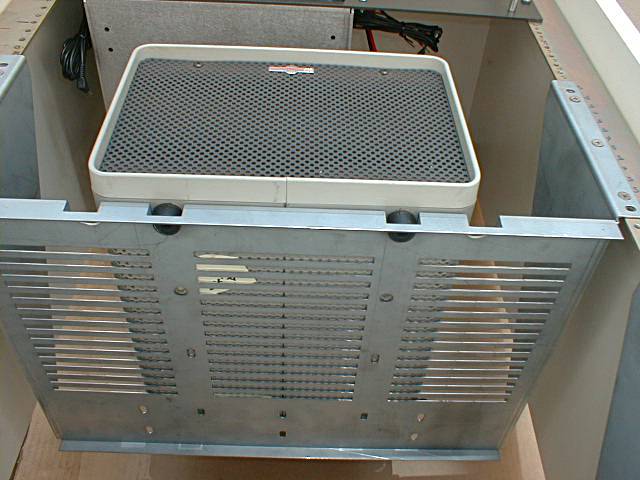

Novexcomm's Collins model RM351-1 and RM351-2 rack mount kit designs allow the user to mount their Collins in our rack mount without removal of the original Collins' case. Our design is different than the original Collins 351R-1 & 351R-2. Our rack trays are identical, the only difference is the front panel. Once the front panel is installed you can't tell them apart.

In addition to above, our units are less costly and available for immediate shipping. Unit cost list is $139.95 but sold direct for $109.95 plus S&H of $18.50 for one unit.

Treat your self for the holidays by rack mounting your Collins gear and protecting your investment.

CRA Endorses NovexComm's new Collins Rack Mount Kit
NovexComm is pleased that The Collins Radio Club has endorsed our new products.

Collins Radio Rack Mounting and HEAT

Some users have expressed concern that our newly designed Collins rack mount kit allows radios to remain in their original cases and may cause heat problems. If that is a real concern to anyone, then there is nothing that says you have to leave the radio in its' factory case. It's the user's option to remove or not to remove the case.

There is a 2" space between the top of one Collins case and the bottom of the rack tray over the lower unit, plenty of room to place a muffin fan. We also added more air flow slots than what the Collins had.

Many Collins users stack their radios on top of each other and don't seem to be concerned about heat.

Many users use muffin fans to move the air out of their rack enclosures.
Any other questions? Let us hear from you. Contact Us Today.

Kenwood RM5000 rack mount works for several popular Kenwood radios:
RM5000 size: 10.63”W by 3.78”H (270x96mm) Use Novexcomm RM5000wos or RM5000s
Radios: R5000, 140, 430, 440, 450, 570, 660, 670, 680, 690, 711, 811, TS2000.

Yaesu FRG100 size radios are a close fit to the Icom RM7100 size rack mount:
FRG100 size: 9.45”W by 3.74”H (240x95mm) Use Novexcomm RM7100wos or RM7100s
Radios: FRG100, FT77, FT707, FT747GX, FT757GX, FT840, FT857, FT890, FT900.

Generic Radio Rack Trays and Panels

We are looking into producing generic rack panels and trays so the user can design and cut their own special radio rack mounts panels. We will offer the panels, made of .090” aluminum for easier cutting (than the .125” used in our standard rack mounts). The trays will be the maximum width, about 16.75” wide, 5.25” and 7.0” high and about 12” deep.

The panels and the trays will be offered separately but are made to be compatible should the user wish to have a complete rack mount.

The idea is the user can order just the tray as a shelf for his radio and may not want to add a panel.
In some installations the user may want just blank panels to fill out the spaces in his cabinet and not want any tray(s).

The 5.25” tray will be made from 16 gauge Paintlok steel and the 7” tray will be 14 gauge Paintlok steel. These racks will support up to 75 and 100 pounds respectively.

Panels will be offered is several sizes, 3.5” (no handles), 5.25”, 7.0”, 8.75 and 10.50” with handles and paint to match the color and texture of our standard rack (excluding the Collins S gray color)

Some rack enclosures suppliers include
http://www.hometech.com
http://www.rackman.com

NovexComm Newsletter

Pacificon 2017

Pacifion 2017
Come see us! Booth #17 AT Pacificon 2017!

Random Rack

2 Fan 2 Speaker with LED & PWM Electronic Dimmer

$150.00

2 Fan 2 Speaker with LED & PWM Electronic Dimmer

Size: 3U

Choose a LED light bar color (white/ red/ blue) runs off of your 12 volts DC
- Buyer specifies which way the fans circulate; both IN, both OUT or one IN one OUT (image shows one IN one OUT if you look carefully at the label)
- Both LED light bar/ dimmer and the fans need your 12 Volts DC or optional AC adaptor pack; ask about it!
- Comes with a user-defined switch; Double Pole Double Throw 125 AC voltage rated; not wired; use for any purpose you need
- 2 speakers, each comes with common 3.5 mm plug

|
Shop for more products in our store by clicking here.

Rack Mount Your Radios

NovexComm provides low-cost, professional rack mounts for many popular radios, giving operators a source for off-the-shelf, low cost radio rack mount kits.

Why Rack Mount Radios?

Here are just a few reasons given by some of the operators we have heard from
  • Gives my radio room a professional look.
  • Saves space so I can buy more radios and have a place to keep them.
  • Makes it easier to access and use my equipment all in one place.
  • Keeps my gear protected from bumps and scratches.
  • If someone breaks into my house, then they will have a difficult time getting my radios.
  • I finally have all those ugly wires out of sight, looks great.
  • My wife likes the way my shack looks; she even shows her friends my room.

Testimonial

WA5RAY Testimonial:
Thanks Novexcomm for your great products. I was trying to rack mount my radio equipment into my console racks and was failing miserably. Luckily, I ran across your ad and have since successfully rack mounted several units very easily. The chassis design of your system for the larger rigs moves the weight of the actual radio equipment from the front panel and transfers it to the rack through your integrated chassis shelf. This greatly helps installing, removing and working on the gear. It also reduces the rattles that come from the stresses from the weight of the gear that is supported entirely from the single panel itself. Very COOL indeed! Thanks again for being there for a guy in need.
Ray, WA5RAY
