Simple, Safe, and Reliable, easy to add backup battery power to your home station or go-kit.
25 Amp total, 3 power outlet ports, ARES standard Anderson Pole Connectors, 3 oz's.

$84.95 + $9.00 shipping USPS Priority mail USA only

(Limit quantity 3 for this shipping price -- Quantity of 4+ will be sent an additional invoice to cover next level shipping)

Buy Now

What is a PWRgate?

"This setup is so slick and simple... it's a no brainer, I had to test mine 5 or 6 times just because it works so well!", said N0AZZ

The Low Loss PWRgate uses MOSFET power transistors to switch the load between power sources with less than a 20 miliVolt drop, much smaller then similar systems that use Schottky diodes. This keeps the power losses to a minimum and delivers full battery power to the load.

The Low Loss PWRgate transfers up to 25 amperes at up to 16 volts dc continuously. It is a safe way to connect both a 12 volt battery and a 13.8 volt power supply to a load, while electrically isolating both from each other. Whenever your power supply is on, the supply feeds the load while also charging the battery, keeping the battery healthy and ready for use when the power supply is off or loses AC power. Switching is instantaneous.

Need more current capability? Maybe not, can you divide your load into two and use more then one LLPG? See our blog page for more ways to use the LLPG.

What is the Low Loss PWRgate?

What type of battery should I use?
The Low Loss PWRgate has been designed to use Sealed Lead Acid batteries such as AGM (Absorbed Glass Mat) or GelCell batteries from 7 Amp Hour to 70 Amp Hour capacity.
Yes, there is a built in Float Charger that will keep your battery fully charged and ready.

News Flash: The LLPG now has 3 output connectors!
By using the latest low loss MOSFETs (< 0.002 ohms R(on)) available, we reduced the parts count and made room for the third output connector, now you get backup switching and power distribution in one!
March 23rd, 2014

LLPG Specifications
Max Voltage 16 Volts
Max Current25 Amps
CircuitPower MOSFET "OR-gate" with powerpath controller
MOSFETS1 in each path, 60 amp, 20v P-channel
Voltage Drop0.020 Vdc at rated output
Charging circuitSchottky diode and limiting resistor, constant voltage float charger
ConnectorsAnderson PowerPoles, 25A, with three output connectors
Size 3.9 x 2.0 x 0.8 in. ice blue, transparent
Circuit board double sided, surface mount
Weight ~3 oz

Now is the time to add solar battery charging to your station backup power.
10 Amp PWM smart charger, same size/weight as LLPG.

$74.95 + $9.00 shipping USPS Priority mail USA only

(Limit quantity 3 for this shipping price -- Quantity of 4+ will be sent an additional invoice to cover next level shipping)

Buy Now

There are two progams, one for the Lead/Acid and one for LiFePO4. The SBCC has a pot for float adjustment in the middle of board just below the LED.

A lite weight answer for go-kits that need some extra power connections for all those things that need power! Same size as our LLPG and SBCC above.
25 amp max, power distribution / combiner.

$104.95 + $9.00 shipping USPS Priority mail USA only

(Limit quantity 3 for this shipping price -- Quantity of 4+ will be sent an additional invoice to cover next level shipping)

Buy Now

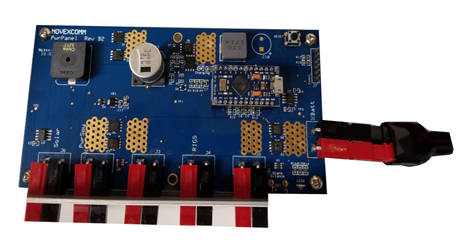

The Rig Walker Power Distribution panel

One input port + 6 output port power distribution panel.
Same small size as our LLPG PwrGate or our SBCC Solar Charge Controller.
Perfect for all those little extras that need a place to plug in.
Can be used to distribute power or combine power sources (multiple batteries or solar panels) Comes with 10 amp auto mini fuse, but can be used with any size fuse up to 25 amps.
It's insulated case makes it perfect for tight spaces in go kits or any where you need it.

Transfers 25 amperes at up to 16 volts dc continuously.

$175.00 + $9.00 shipping USPS Priority mail USA only

(Limit quantity 3 for this shipping price -- Quantity of 4+ will be sent an additional invoice to cover next level shipping)

Buy Now

The Novexcomm PWRgate

The Novexcomm Power Gate and Solar Charge Controller all-in-one, can transfer 25 amperes at up to 16 volts dc continuously. It is a safe way to connect both a 12 volt battery and a 14.6 volt (for properly charging LFP Lithium Iron Phosphate batteries) power supply to a load, while electrically isolating both from each other. Whenever your power supply is on, the supply feeds the load while also charging the battery, keeping the battery healthy and ready for use when the power supply is off or loses AC power. Switching is instantaneous.

This Power Gate has been designed to use Sealed Lead Acid batteries such as AGM (Absorbed Glass Mat) or GelCell batteries from 7 Amp Hour to 70 Amp Hour capacity and LFP Lithium Iron Phosphate batteries. Please specify what kind of battery you plan on using, for these have to be programed for each specific battery. They come normally programmed for LFP Lithium Iron Phosphate batteries.

Please keep in mind when using a power supply with this unit as a battery charger, the voltage must be no lower than 14.4VDC; 14.6VDC is preferred for proper charging. We also offer a Novexcomm RFI filtered 14.6VDC power supply just for this use.

These units come with no housing/encloser, as they are designed as a bolt-onto rack tray with stand-offs.

Yes, there is a built in Float Charger that will keep your battery fully charged and ready.
