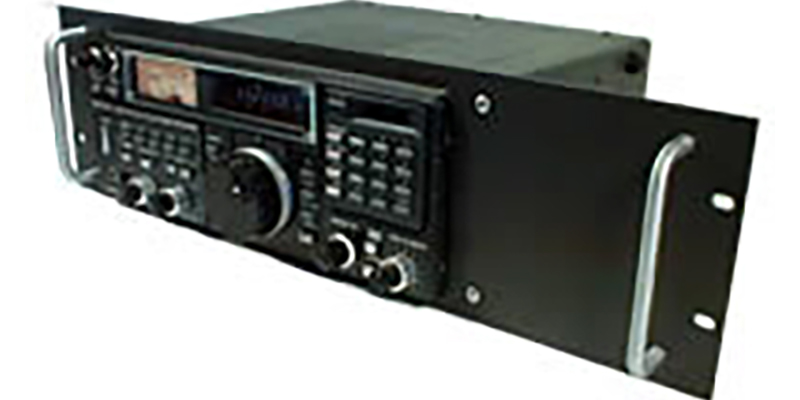

R7000 and R7100 Rack Mount Kits

Standard 3U size (5.25"H) and 19" wide. Mounting holes are standard EIA and will match any standard EIA rack enclouser.

This series rack mount have an aluminum tray, .090" thickness, have vent holes at the rear for cooling of the radios and holes in the base that match the radio’s footprint. The front panel is .125" aluminum and painted to match our standard baked black brown paint.

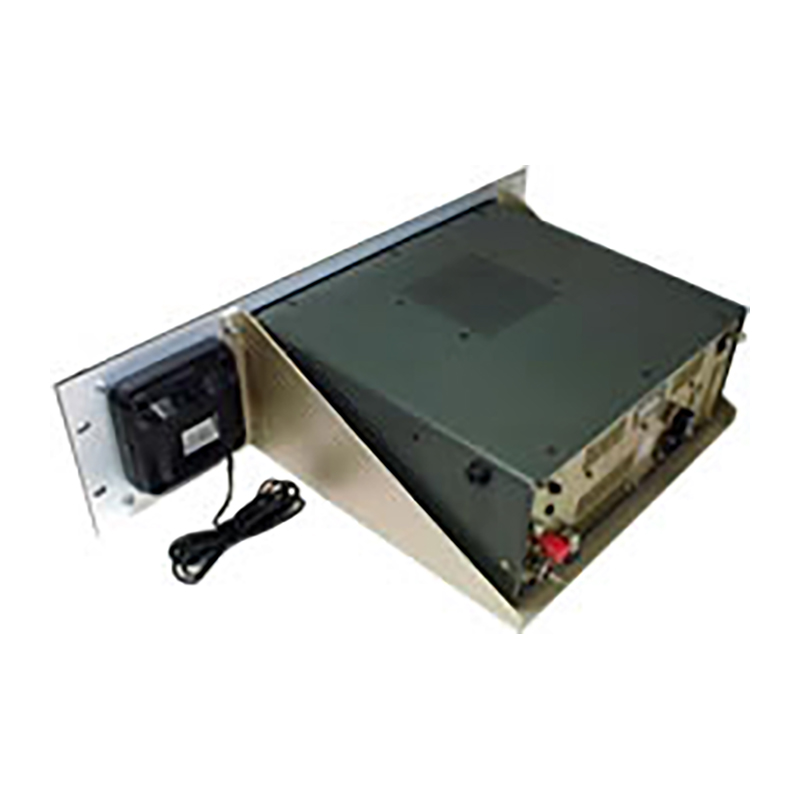

These unit come with or with out speakers. The speakers have a 3" Mylar cone and will handle up to 8 Watts of audio, many times more than the radio can deliver. The speaker plug is a standard mini phone plug and simply plugs into the radios external speaker jack. These speakers have a rich tone and much more pleasant to listen to than the original radio’s speakers. Retail price for

these speakers is in the $30 range.

Installation usually requires the removal of the rubber feet, wire bail and any side mount hard ware. This is an easy task of unscrewing several screws. It is easy to install the rack mount, then slide the radio into place. I the user wants to secure the radio to the rack mount, the screws from the feet can be used.

These rack mounts are designed for static use and will require additional support if used in mobile operation.
